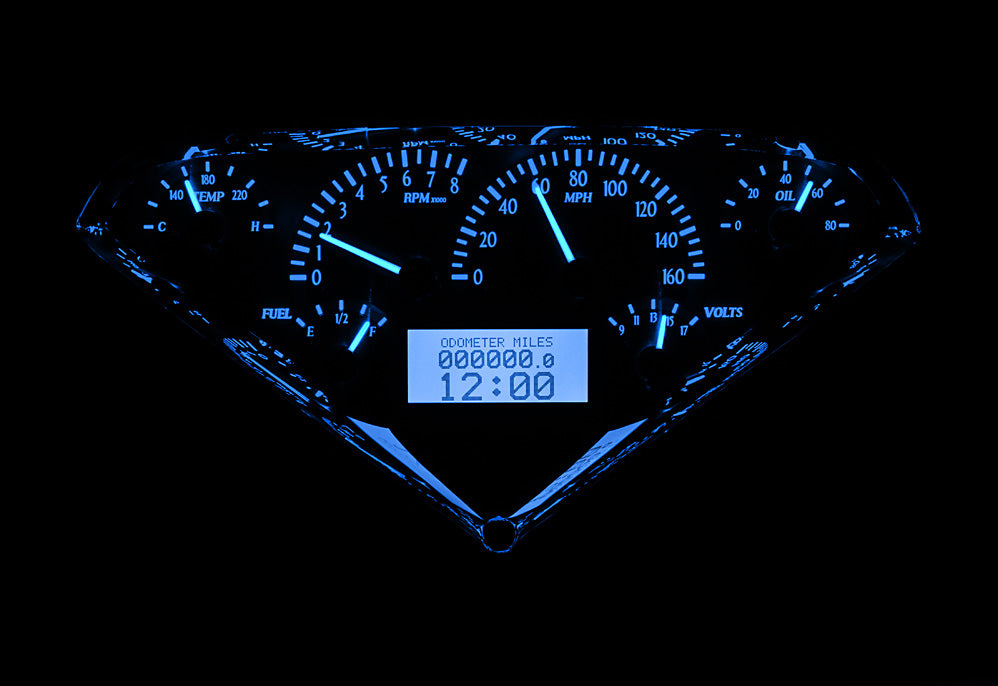

1955-1959 Chevrolet Truck Dakota Digital VHX Analog Instrument System

1955-1959 Chevrolet Truck Dakota Digital VHX Analog Instrument System

SKU: VHX-55C-PU

Regular price $845.99
Regular price Sale price $845.99
Sale Sold out

Analog Gauges


Speedometer ·0 -160 MPH (optional metric version 0- 255 km/h)

Tachometer ·0- 8,000 RPM

Oil Pressure ·0- 80 psi

Water Temperature ·100- 260ºF (optional metric version 40- 120ºC)

Fuel Level ·E, 1/4, 1/2, 3/4, F

Voltmeter ·9- 17 VDC

Lighting ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers


Standard Displays
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)

Performance Meters
·0- 60 MPH Timer (0- 100 kmh)
·1/4 mile time
·1/4 mile end speed (trap speed)
·High speed recall
·High RPM recall

Gauges
·Speedometer (0- 255 MPH/kmh)
·Tachometer (0- 9,990 RPM)
·Oil Pressure (0-100 psi displayed in 1 psi increments)
·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
·Voltmeter (9- 17 VDC)
·Fuel Level (0-99% full)

Lighting
·Auto-contrasting LCD display for optimal view in the brightest of sunlight.
·LED backlit at night to match/ complete the look at night.

Built-in Indicators


Indicators
·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-2000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)

Included Sensors


Water Temperature ·1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure ·1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator ·Replaces GM style speedometer cables with a 10 ft harness.
(Tremec and Ford style adaptors available on request.)

Bushings ·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration


Pushbutton ·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
