1963-1966 CHEVROLET OR GMC Pickup Truck Aluminum Radiator And 16 Inch Fan Kit AT Cold Case Radiators FREE SHIPPING

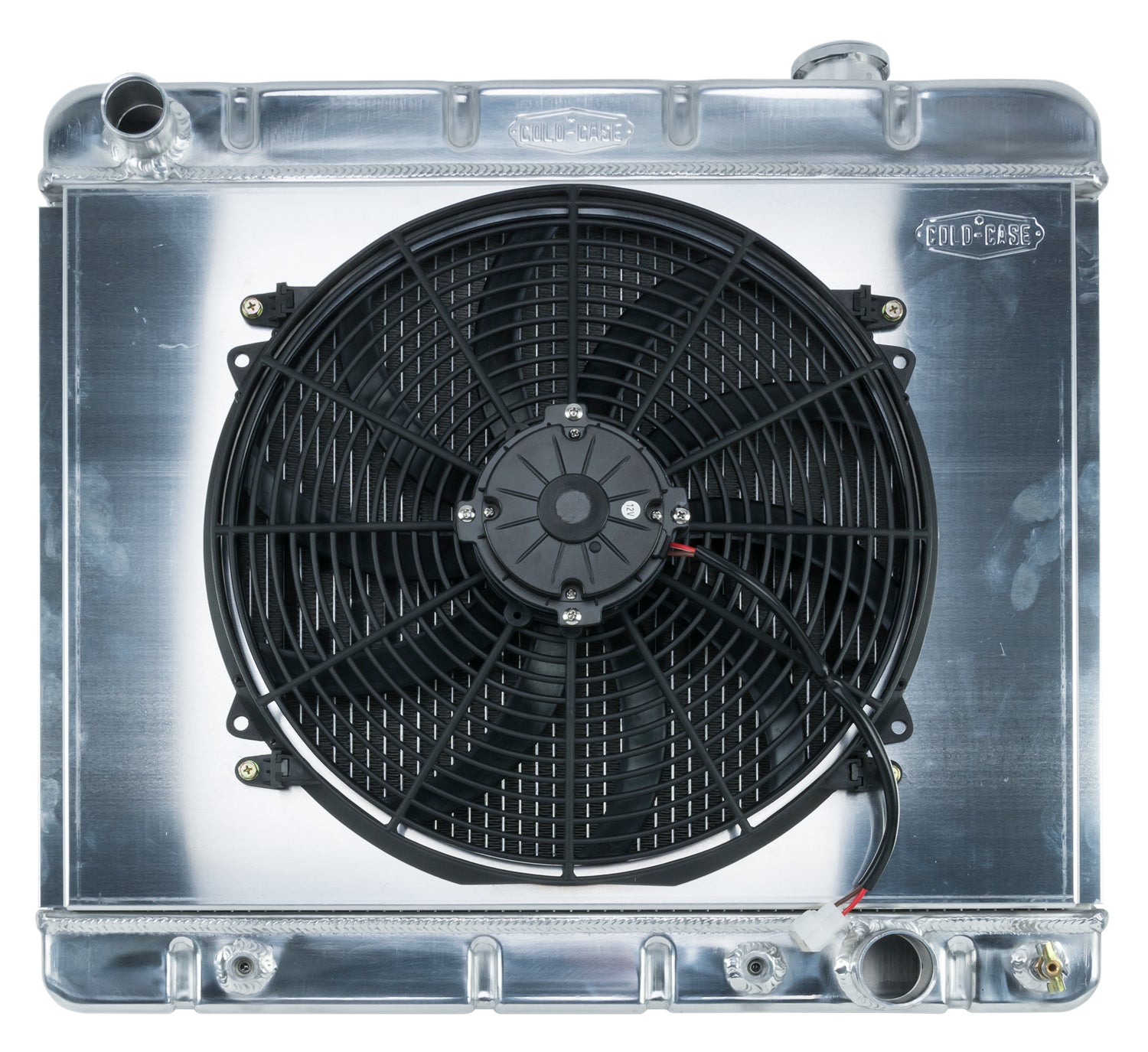

1963-1966 Chevy/GMC Pickup Truck Aluminum Performance Radiator and 16 inch fan kit. For trucks with heavy duty 4 core mounts.

FREE SHIPPING

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic trans
• Direct fitment for 63-66 GM Truck
• Old Part Number: RPE55AK

Radiator Specs

• Core Height 17.4 inch
• Core Width 22.75 inch
• Overall Height 22.5 inch
• Overall Width 24.5 inch
• Overall Thickness 6.75 inchs
• 1.5" Upper Hose
• 1.75" Lower Hose
• Tubes (2) 1.25 inch Tubes
• Trans Cooler Fitting: 5/16" Inverted Flare
