1977-1987 CHEVROLET OR GMC Truck 1.75" Lower Aluminum Radiator AT Cold Case Radiators FREE SHIPPING

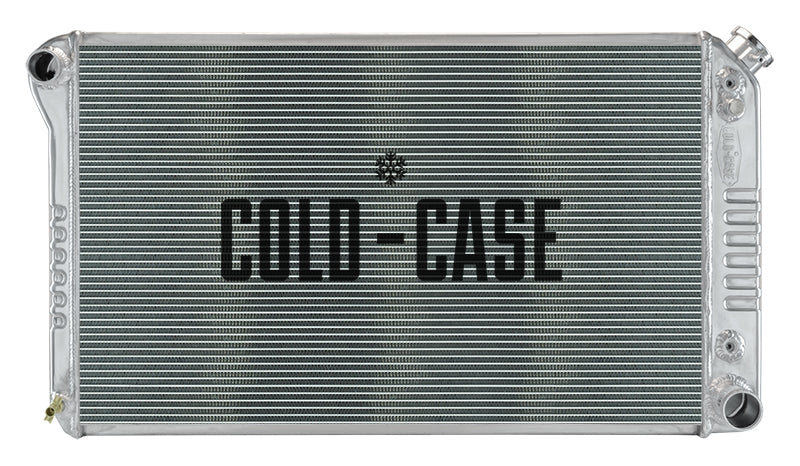

1977-1987 Chevy/GMC Pickup Truck 19" High Aluminum Performance Radiator.

FREE SHIPPING

AT Cars. For taller 21" version, see GMT556A-21.
Upper Hose 1.5" and Lower Hose 1.75". For other configuration, see GMT556A-1

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Automatic trans
• Direct fitment for 77-87 GM Truck w/ 1.75" Lower Hose
• Old Part Number: RPE556

Radiator Specs

• Core Height 17.2 inch
• Core Width 28.35 inch
• Overall Height 18.6 inch
• Overall Width 34.15 inch
• Overall Thickness 3 inch
• Upper Hose: 1.5 inch
• Lower Hose: 1.75 inch
• Tubes (2) 1.25 inch Tubes
• Trans Cooler Fitting: 5/16" Inverted Flare
