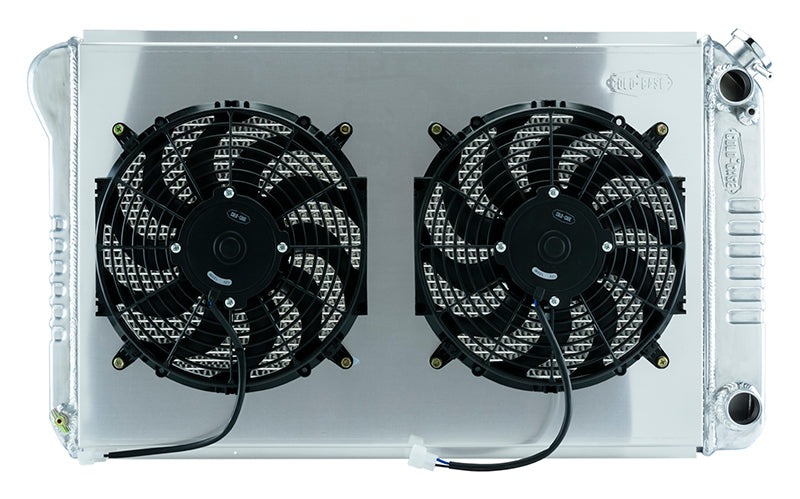

1977-1987 GM Truck 21" LS Swap Aluminum Radiator and 12" Fan Kit FREE SHIPPING

1977-1987 Chevy/GMC Truck 21 Inch LS Swap Aluminum Performance Radiator and 12 Inch Fan Kit.

FREE SHIPPING

This is the radiator that is 21 inches high overall and has the steam port for an LS Swap. External trans cooler is recommended.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

Fits:
1977-1987 Chevy/GMC Truck LS Swap

Details:

• 100 percent TIG welded
• All Aluminum
• Fan Diameter 12 Inch
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Direct fitment for 77-87 GM Truck LS Swap trucks

Radiator Specs

• Core Height 18.8 inch
• Core Width 28.35 inch
• Overall Height 21 inch
• Overall Width 34.33 inch
• Overall Thickness 3 inch
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
• Tubes (2) 1.25 inch Tubes
