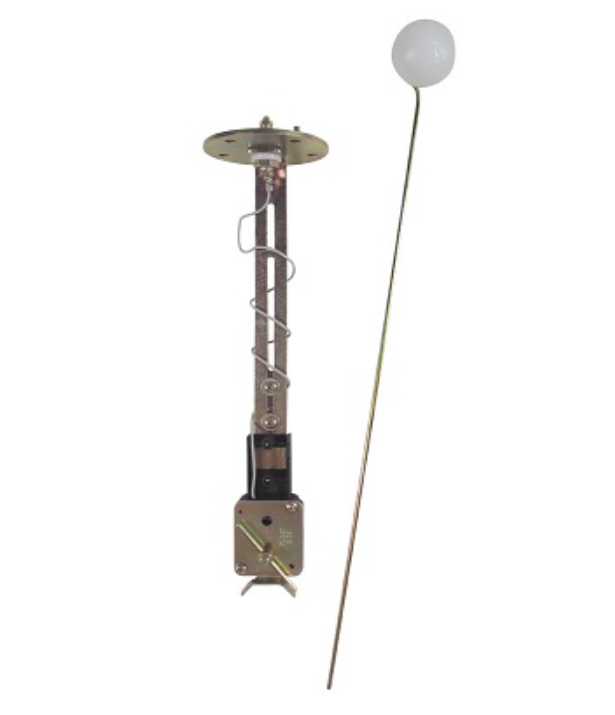

5 Bolt Fuel Sending Unit - 0-90 Ohm

This fuel tank sender mounts with five mounting screws. It is adjustable to work on fuel tanks from 6 to 24 inches deep by cutting to length using the instructions included. Since fuel tank senders only read resistance to ground they work on all 6-24 volt systems positive or negative ground. They do not have a fuel pickup tube built into them as some original senders may have.  Made with a high quality ceramic board rheostat. Our fuel senders are available for the following applications.

                       Application Listing:

• SW - SW gauges - 240-33 Ohms
• VDO - VDO gauges - 10-180 Ohms
• GME - GM up to 1964 - 0-30 Ohms
• GML - GM 1965 and up - 0-90 Ohms
• ORG - Early Ford & Mopar - 73-10 Ohms
• FDL - Ford 1987 and up - 16-158

The first number of the (Ohms) represents empty and the following is for full.
