BIM Expansion, EGT/cylinder head temp BIM-12-2
BIM Expansion, EGT/cylinder head temp BIM-12-2
SKU: BIM-12-2
Regular price
$113.95
Regular price
$119.95
Sale price
$113.95
Unit price
per
Couldn't load pickup availability

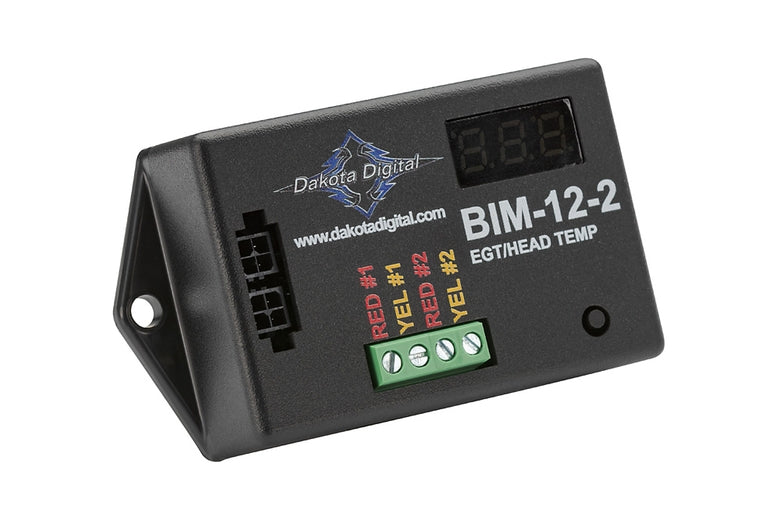

The Dakota Digital BIM-12-2 Exhaust Gas Temp (EGT) and Cylinder Head Temp (CHT) Module allows for up to 2 temperature inputs (ie 2 EGT or 2 CHT or 1 EGT & 1 CHT readings).
The BIM-12-2 supersedes the BIM-12-1.
| Display | Available Senders | Res. | High Warning |
| HEAD |
SEN-11-4, SEN-11-5, SEN-11-6, SEN-11-7, SEN-11-8 |
2°F | 300- 600°F |
| HEAD A | SEN-11-4, SEN-11-5, SEN-11-6, SEN-11-7, SEN-11-8 | 2°F | 300- 600°F |
| HEAD B | SEN-11-4, SEN-11-5, SEN-11-6, SEN-11-7, SEN-11-8 | 2°F | 300- 600°F |
| EGT | SEN-12-4, SEN-12-5, SEN-12-6, SEN-12-7 | 5°F | 1140-1760°F |
| EGT A | SEN-12-4, SEN-12-5, SEN-12-6, SEN-12-7 | 5°F | 1140-1760°F |
| EGT B | SEN-12-4, SEN-12-5, SEN-12-6, SEN-12-7 | 5°F | 1140-1760°F |
*The BIM-12-2 will supply this information to the VHX, HDX, RTX and VFD3 systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.
