BIM Expansion, volt/current BIM-05-1
BIM Expansion, volt/current BIM-05-1
SKU: BIM-05-1
Regular price
$99.70
Regular price
$104.95
Sale price
$99.70
Unit price
per
Couldn't load pickup availability

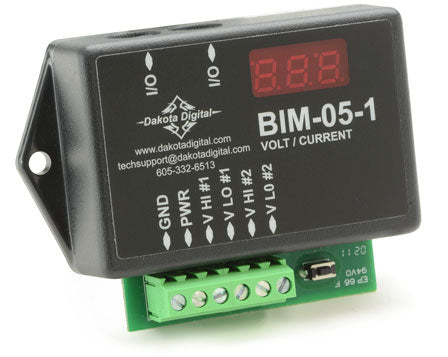

The BIM-05-1 allows the Dakota Digital RTX, HDX, VHX and VFD systems to display up to 2 additional Volt or 2 Current or a combination of 1 Volt and 1 Current readings.
| Display | Sender Part # |
Range | Resolution | Low Warning |
High Warning |
| VOLT | N/A | 0- 50.0VDC | 0.1 | 0- 31 | 10- 41 |
| CURRENT | SEN-20-3 | 0- 250A | 1 | N/A | 5- 320 |
*The BIM-05-1 is designed to supply information to the VHX, HDX, RTX and VFD systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.
