Holley Sniper EFI Hyperspark Kit w/ 565-300 - Chevy

Holley Sniper EFI Hyperspark Kit w/ 565-300 - Chevy

SKU: 565-300K

$840.99
$840.99
Sale Sold out

Overview

Our HyperSpark Master Kits were designed to make upgrading your ignition on a Sniper EFI-equipped engine simple. When installed concurrently with a new Sniper EFI system, the combination creates the easiest to install EFI conversion on the market - only four flying lead connections required. This harness only requires one connection to a switched power source, battery positive, battery negative, and fuel pump power. The pre-terminated connectors and a built in 40A relay provides power to all of the components within the system. With the included Sniper EFI Main Harness you no longer need to run multiple wires to provide switched power for each individual component. This not only helps prevent wiring confusion, it will speed up your install time and clean up your engine bay. Just route the harness and pre-terminated connectors to your HyperSpark coil, distributor, and ignition box and plug them in.

Features:

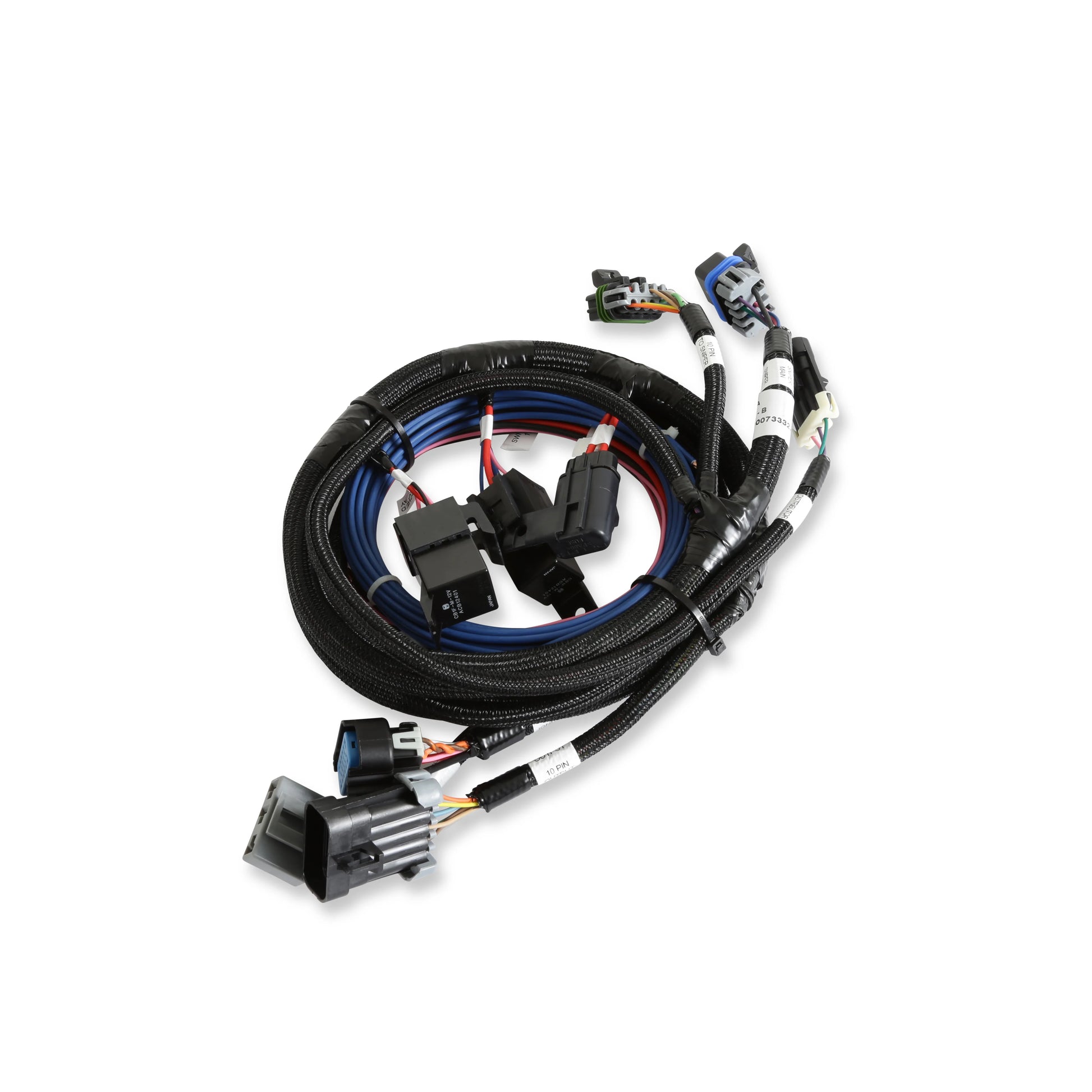

  • Plug and Play Sniper EFI Main Harness replaces the standard Sniper EFI harness with four loose leads, Battery Positive, Battery Ground, Switched 12v, and Fuel Pump Power for a simple and streamlined installation
  • Designed for existing or new Sniper EFI installations. The HyperSpark Master Kit harness retains the same flying lead wire colors as the Sniper EFI main harness, new installations will not use the Sniper EFI standard harness or coil driver

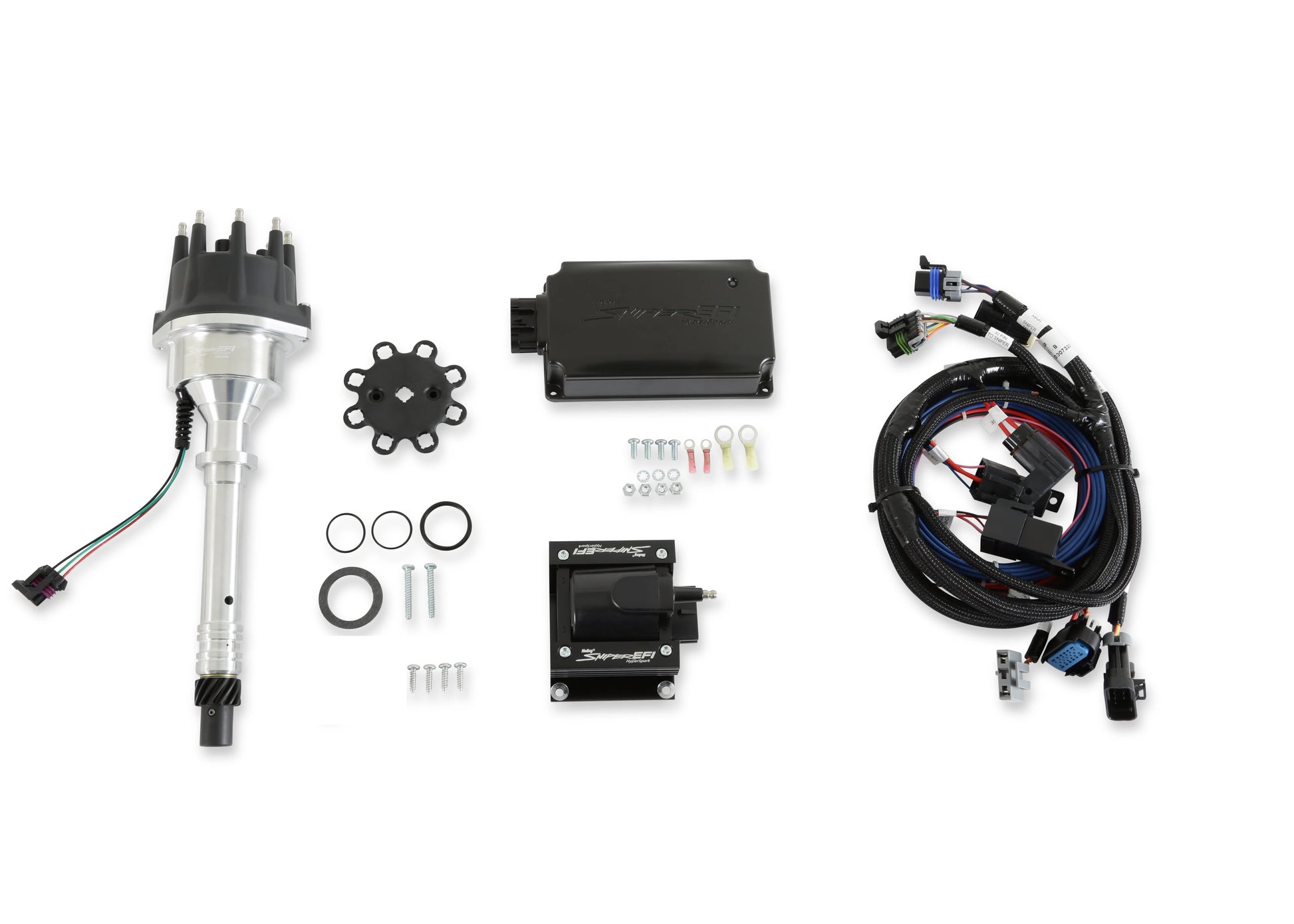

  • Complete Ignition system includes: HyperSpark Ignition Box, HyperSpark Ignition Coil, HyperSpark Distributor (for your application), and a plug and play main harness

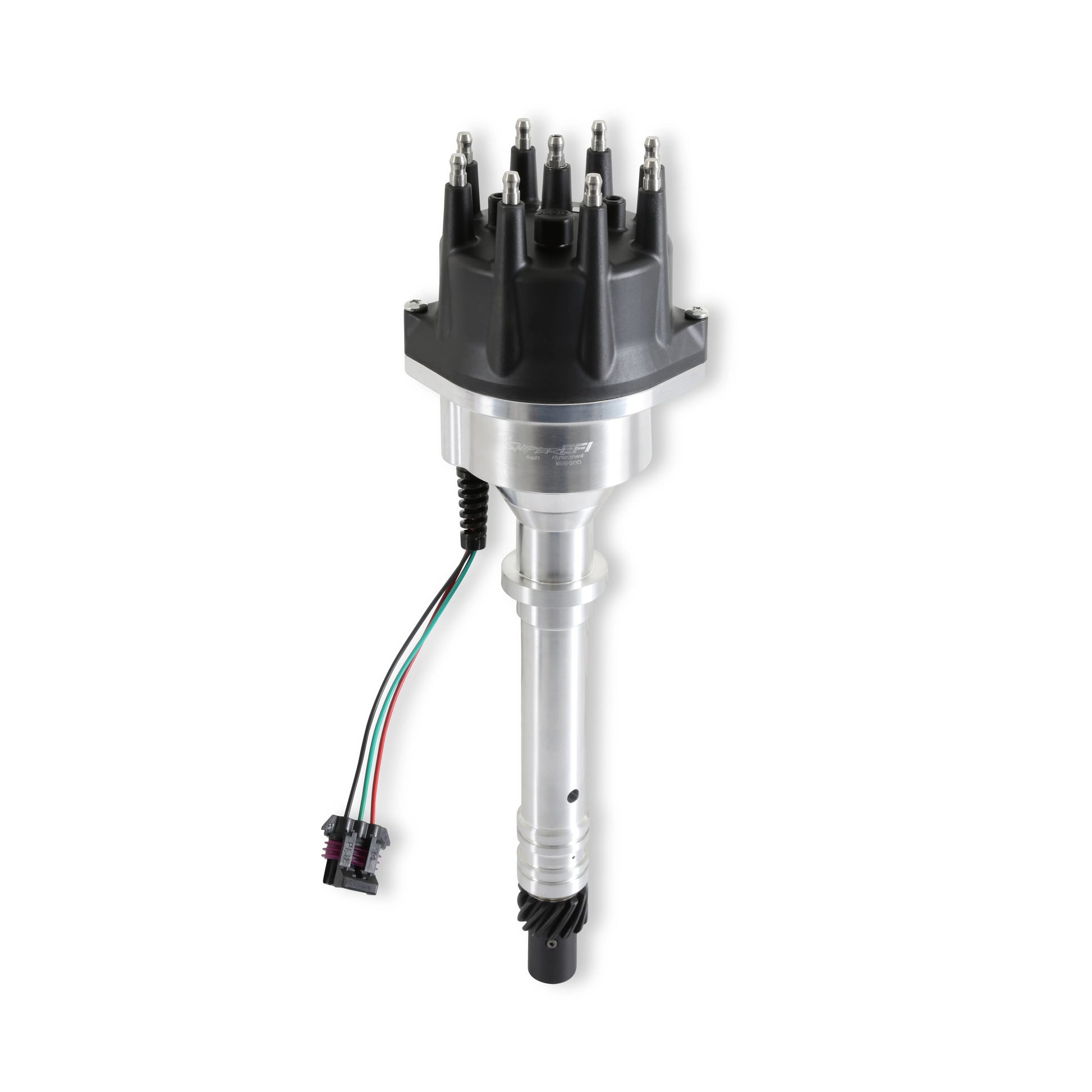

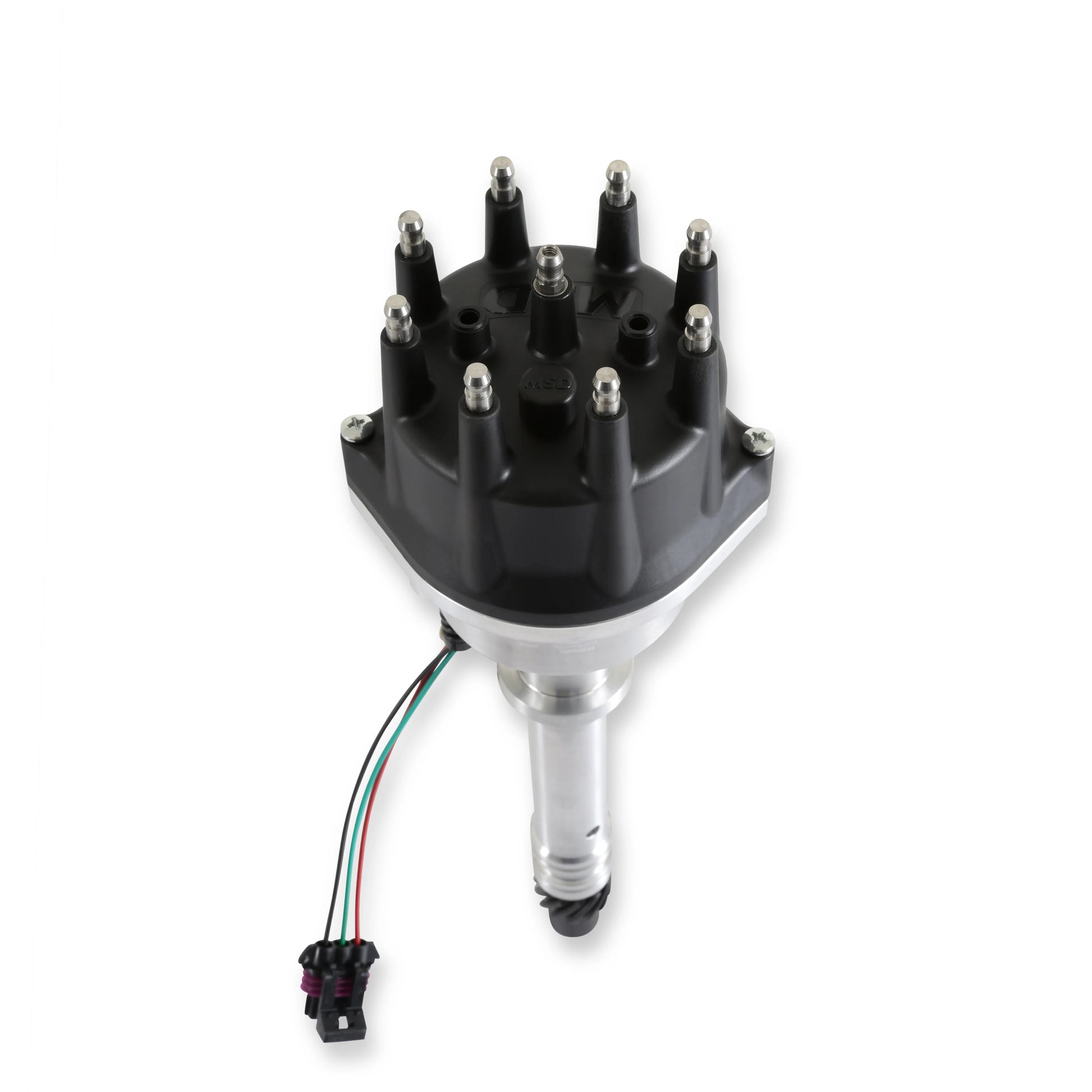

  • HyperSpark Distributors feature a Hall Effect crank trigger sensor providing a noise-free RPM signal to the Sniper ECU

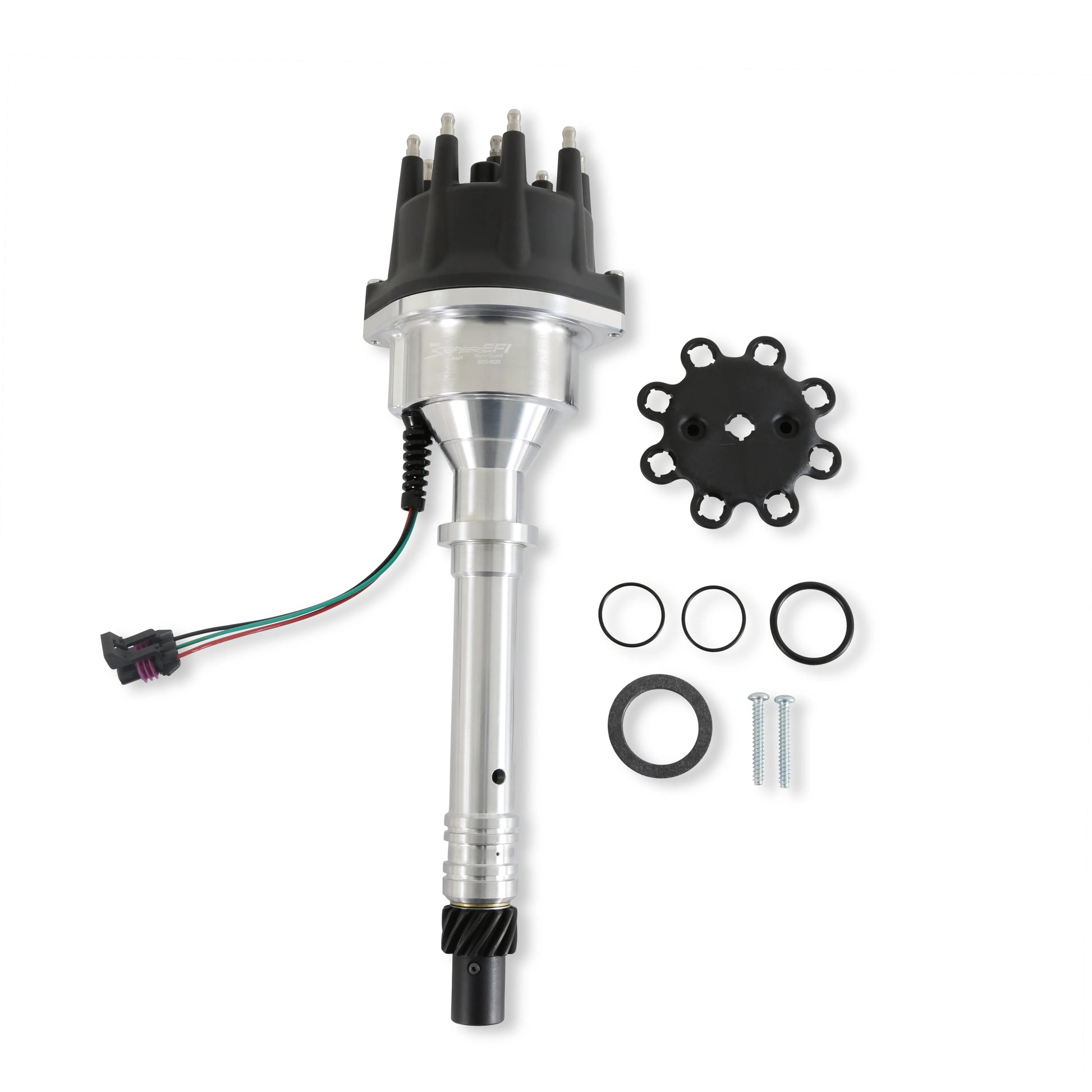

  • Patented Clear Installation cap eliminates any confusion while installing the distributor

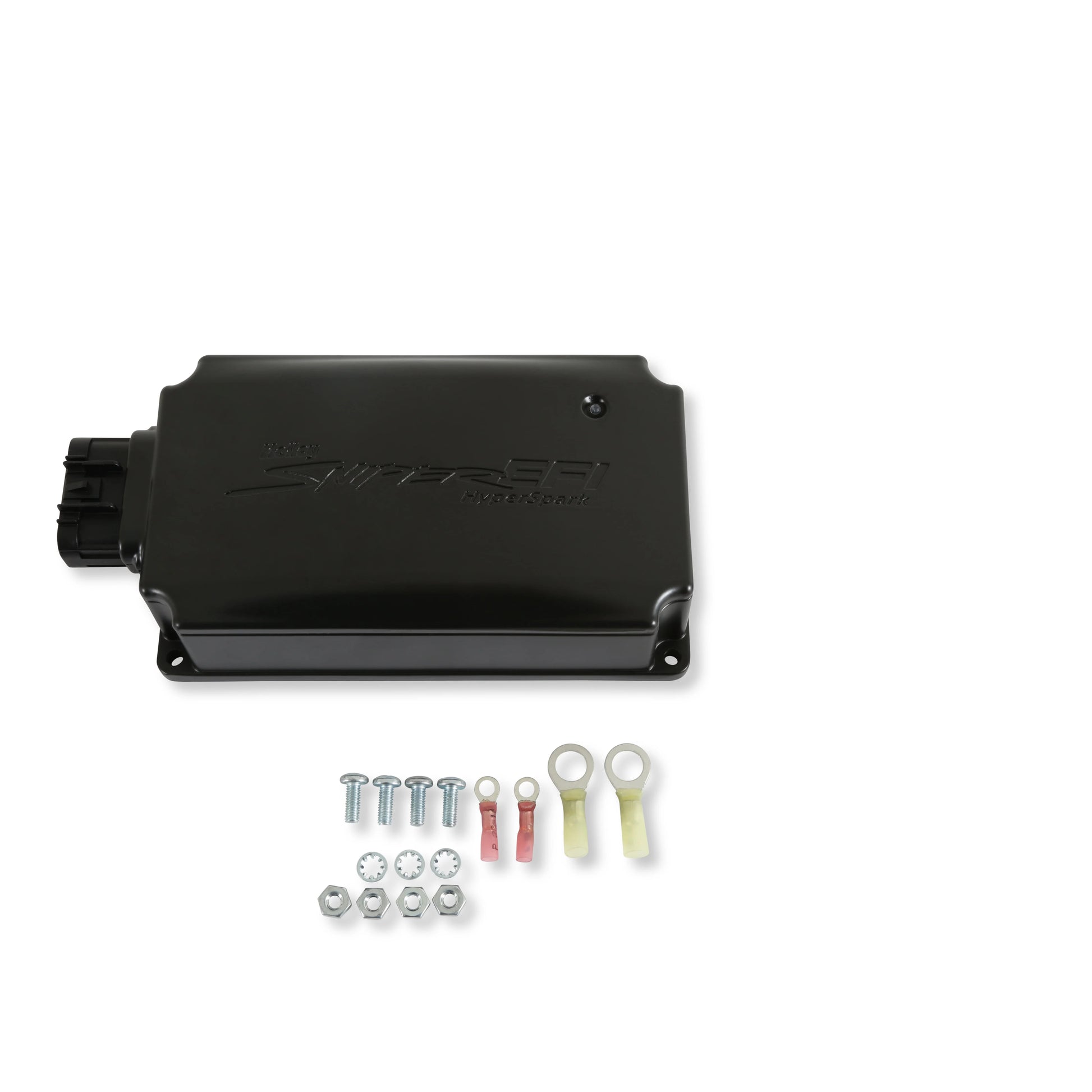

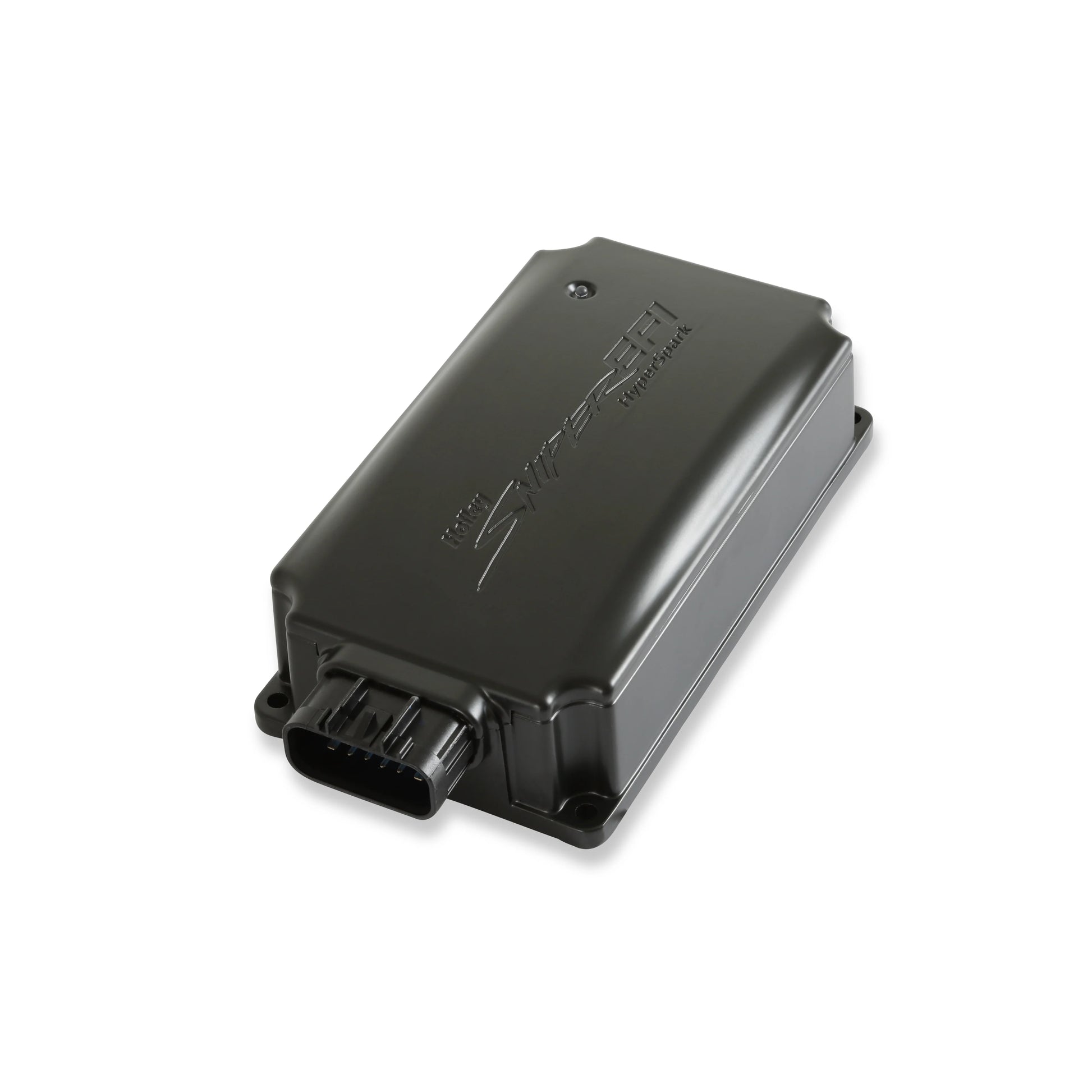

  • HyperSpark CD Ignition box is seal and powder coated to be installed in the harshest of locations
  • External LED on Hyperspark CD Ignition box helps verify 12v, cranking RPM, and low battery voltage
  • 135mJ of spark energy when used with the HyperSpark Ignition coil ensures complete combustion
  • Integrated ignition coil bracket simplifies mounting the Ignition coil
  • Ignition coil connector removes any doubt of loose connections at the Ignition coil
  • Enables timing control on a Sniper EFI Installation
  • Included Main Harness is not compatible with Sniper 2 Systems

Specs


Brand    Holley Sniper EFI
Category    Ignition
Color    Shiny
Distributor Type    Hall Effect
Emission Code    3
Grade Type    Performance
Product Type    Distributor
UPC    090127130193
Part Number    565-300K

Emissions

3

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.


The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle


WARNING: It is against the law to install this part on an Emissions Controlled Vehicle


The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
