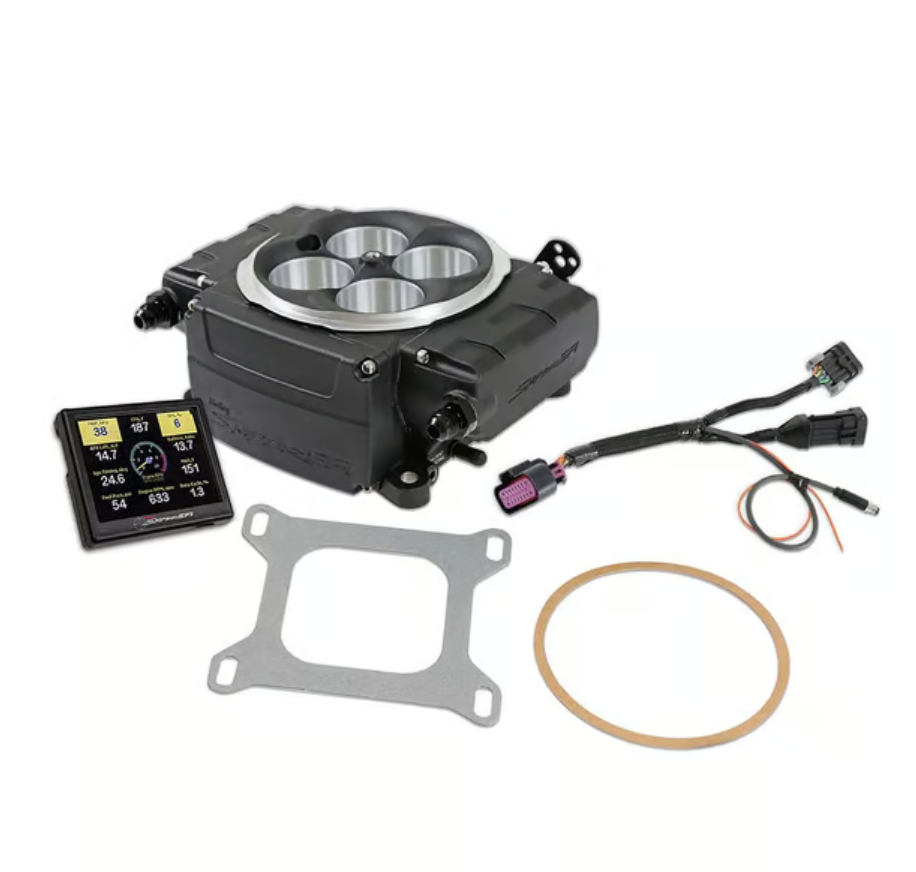

Sniper 2 EFI Upgrade Kit - Black Base upgrade kit without fuel system

Features:

• Main Features
• Update your Sniper EFI to the new, improved Sniper 2 in less than one hour!
• Eliminates the need to rewire your existing Sniper EFI installation - one step, plug and play upgrade to a Sniper 2 throttle body
• Improve your ride with the benefits of Sniper 2, including wireless connectivity (coming late 2023), smoother throttle feel, improved RF interference resistance, hidden wiring harness and more
• Four total kits available – polished and black, with or without external fuel pressure regulator (required for Sniper 2)
• Reuses existing coolant temperature and wideband oxygen sensors
• All new design – the #1 EFI Conversion just got better!
• Supports up to 650hp naturally aspirated or 575hp on boost with four 100 lb/hr injectors
• Next generation ECU features improved RF noise and interference resistance (stands up to old car wiring, noisy alternators, faulty plug wires)
• Redesigned throttle shaft and plate geometry for a smoother throttle feel
• Sniper 2 is Part of the Sniper EFI Complete Ecosystem
• Sniper 2 is compatible with the complete Sniper EFI Ecosystem that includes plug-n-play Hyperspark Ignition systems (coil, ignition box and distributor), fuel systems (fuel lines, fuel pump hangers), multiple displays and more
• Available with fuel system kits: that include an adjustable external regulator, fittings, and a 3’ section of fuel hose, allowing you to easily mount your regulator in the engine bay
• Additional Features
• (NEW) Integrated transmission kick down provisions for GM TH350/400, 200-4R/700R4 and Ford C4/C6 applications
• (NEW) “Hidden Harness” wiring harnesses exits from the rear of throttle body for a clean appearance
• (NEW) Inputs and outputs consist of: 2x Ground Inputs, 2x Ground Outputs, 1x TPS output (0-5v), and 1x Tach Output
• (NEW) Redesigned injector connector for improved reliability
• (NEW) Onboard contactless magnetic TPS sensor ensures an accurate TPS reading
• (NEW) Next Generation mil-spec style M8 positive lock connector for CAN1 and CAN2 provides the latest in CAN bus technology for a simple yet robust connection
• (NEW) Cast-in fuel crossover from the primary to secondary fuel rail
• (NEW) Sniper 2 throttle bodies are serialized in house, which provides each unit a birth certificate for an improved customer service and warranty experience in the event of any unit needing to be inspected
• Patent Pending

Specs

Accelerometer Support    No
Boost Control    No
Brand    Holley Sniper EFI
CAN-BUS Support    Yes
Category    Air and Fuel Delivery
CFM    800
Coast Guard Approved    No
Coil Per Cylinder Ignition Support    No
Datalogging Support    Yes
Distributor Included    No
Dry Nitrous Control    No
e85 Support    No
EGT Support    No
Emission Code    3
Finish    Black
Flange Style    4150
Forced Induction Support    Yes
Fuel Filter Included    No
Fuel Hose Included    No
Fuel Injectors Included    Yes
Fuel Pressure    58.5 PSI
Fuel Pressure Regulator    No
Fuel Pressure Regulator Included    No
Fuel Pump Included    No
Fuel System    Not Included
Grade Type    Performance
Height    3.28"
Ignition Timing Control    Yes
Individual Cylinder Fuel Corrections    No
Injector Size    100 lb/hr @ 58.5 PSI
Inlet / Outlet Size    9/16-18 Female O-Ring (AN 6)
Intake Manifold Included    No
Knock Retard Support    No
MAP Sensor    2 Bar
Max Horsepower Rating    650 Naturally Aspirated
Model    4150 EFI Conversion Throttle Body
Multi-Stage Nitrous Control    No
Power Distribution Module    No
Product Type    Sniper EFI
Progressive Nitrous Control    No
Self-Tuning    Yes
Throttle Position Sensor Included    Yes
Traction Control Support    No
Transmission    All

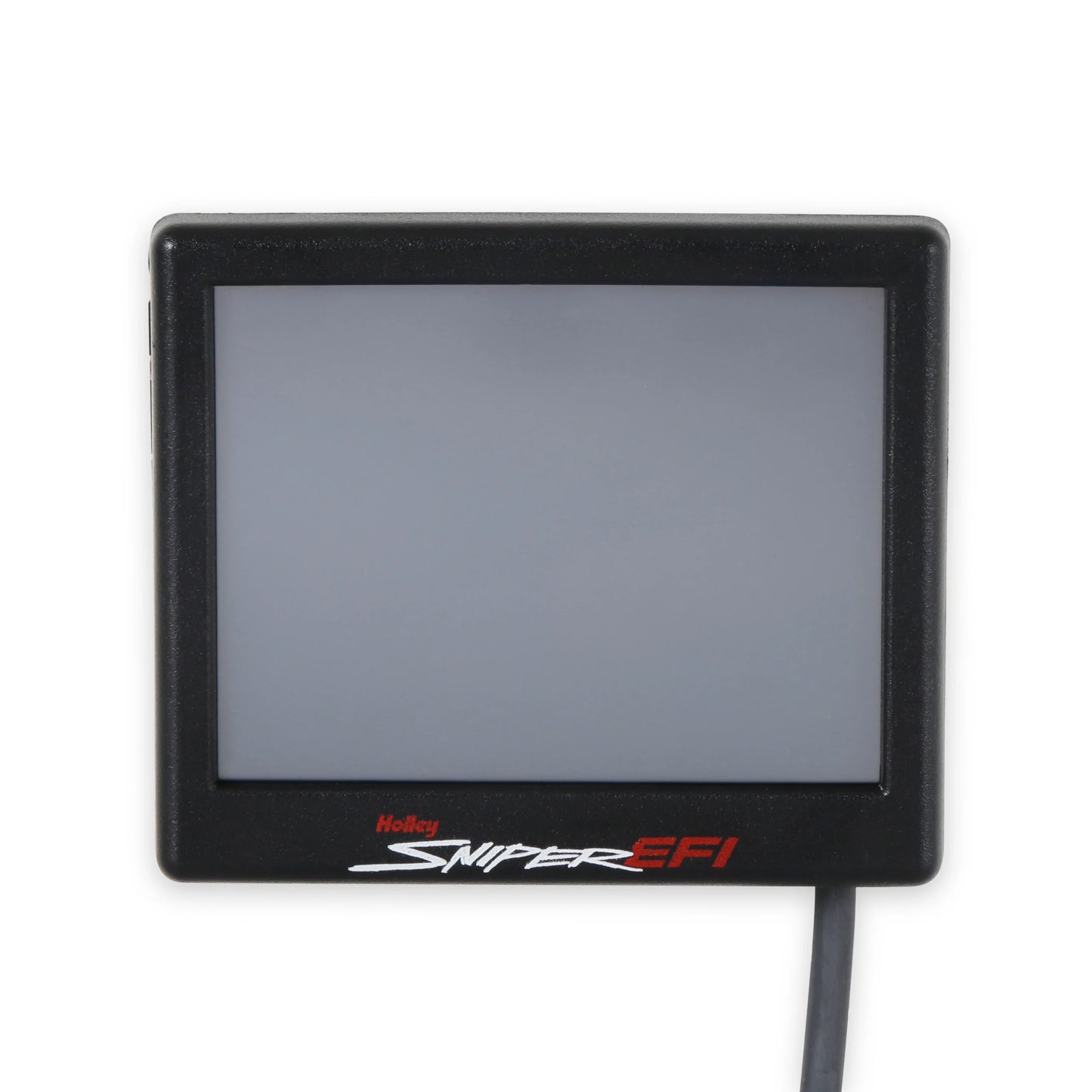

User Interface    3.5 in Handheld
User-Tuneable    Yes
Warranty    Two Year Standard, Extended Via Product Registration
Wet Nitrous Control    No
UPC    090127843659
Part Number    550-511-3AX
